Fil - GH 300V
Spatial reinforcement welding machine E
Machine Fil –GH 300V
( year of manufacture 1999 )
Spatial reinforcement welding machine E
(5 pcs of wire unwinding, 1 pc of automatic stacking 14m, 5 pcs of straightening rollers)
1. SPECIFICATIONS
Upper flange 5 - 14mm smooth or ribbed materiál
Diagonal 5 - 7mm smooth material (5 mm only up to beam height 250mm-300mm dia 6
Bottom flange 5 - 14mm smooth or ribbed material
Beam height 70 - 300mm for simple flanges
Bright range
Bottom flange 75mm (outside)
2. MACHINE COMPOSITION

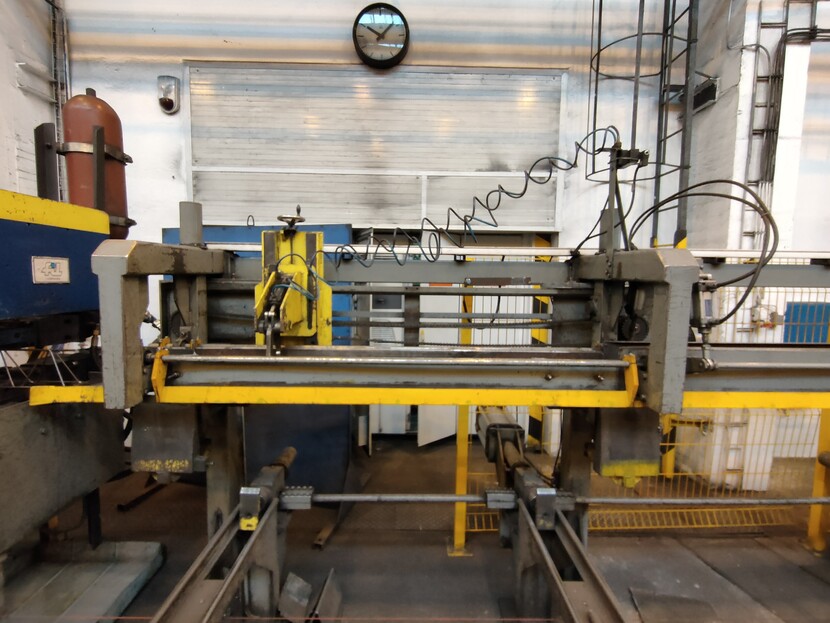

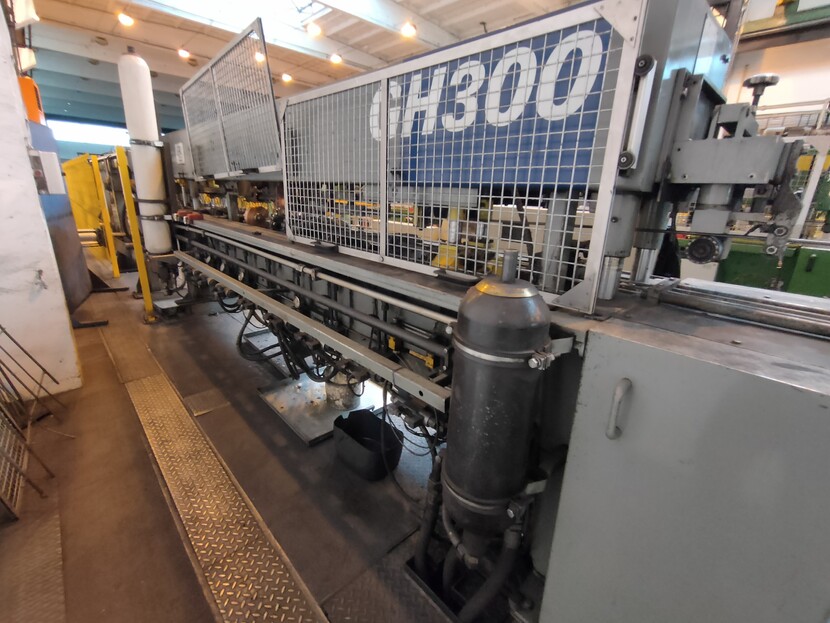

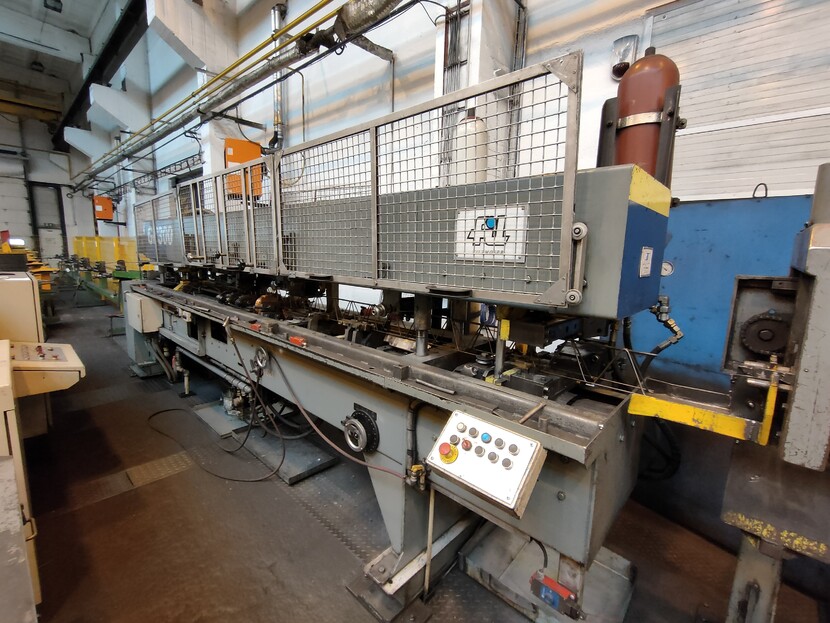

Pos.1 1. Fil-GH300V automatic beam welding machine with variable moove
Equipped with the following:
- electric height adjustment of the whole machine
- integrated bracket for expansion devices
- integrated mechanical unwinding device
Beam height infinitely adjustable from 70-300mm.
Welding at the level of the upper flange from HP 8 mm diameter and beam height 110mm.
Step 190 to 210mm.
Base width 75mm (Special base widths through expansion).

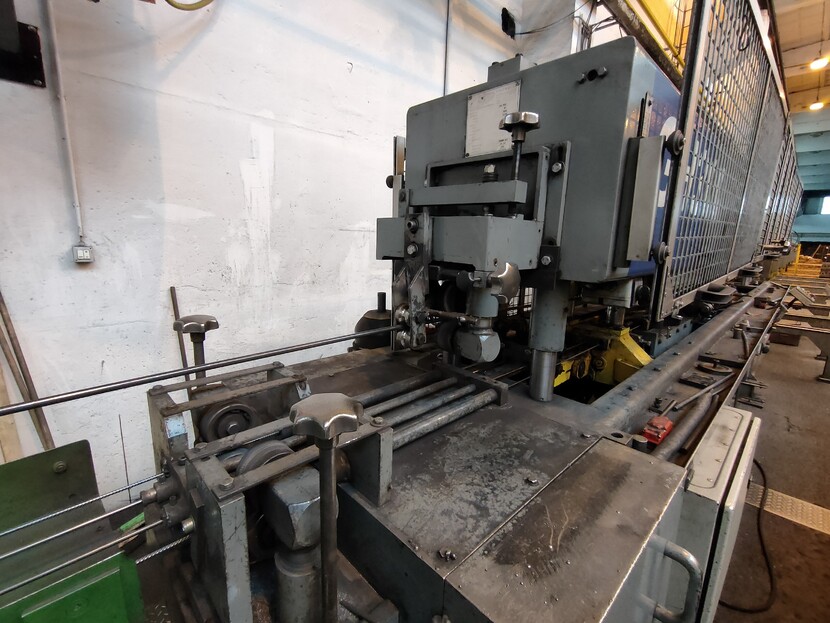

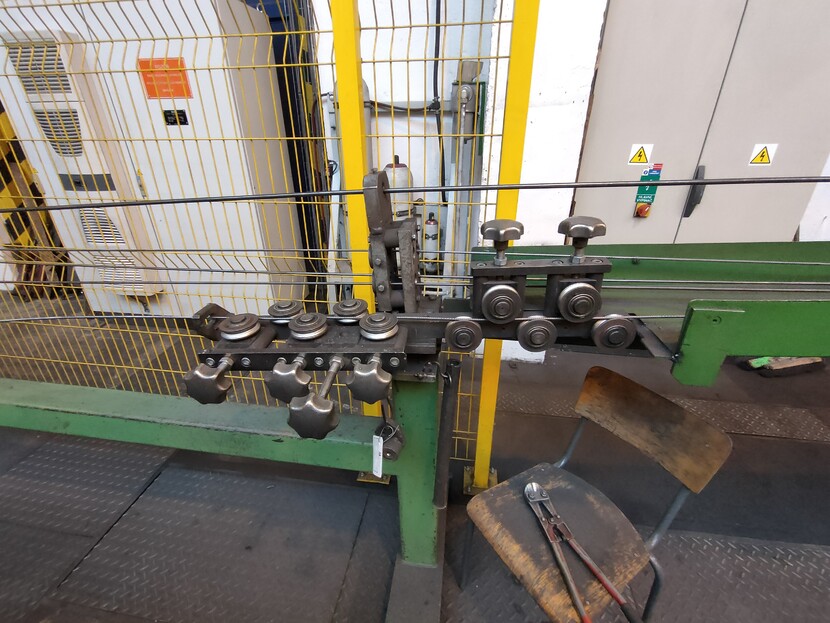

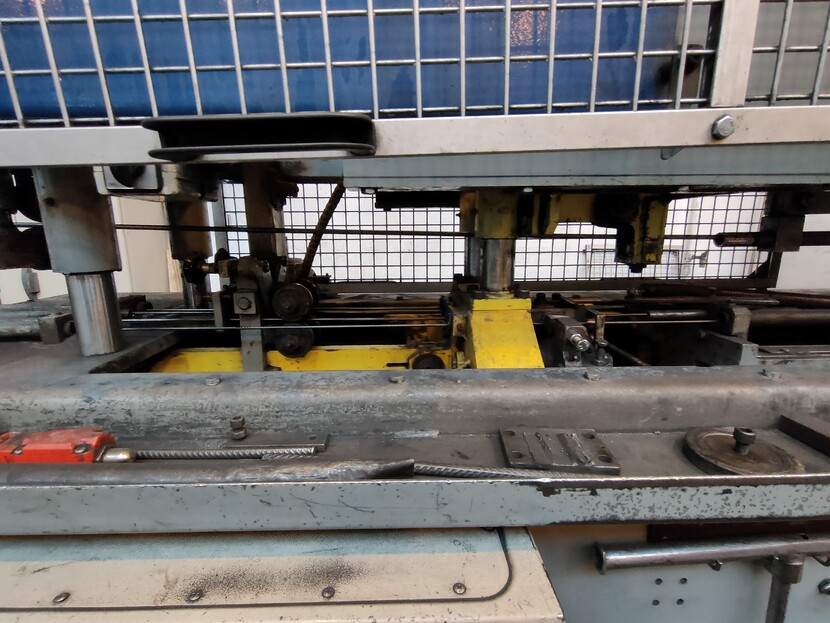

Wires are fed from coils and individually adjustable pulley dressings equaled to 2 levels.
The dressing blocks are individually adjustable to the wire diameter.
A hand crank can be fitted on one of the leveling rollers for inserting wire into the machine.

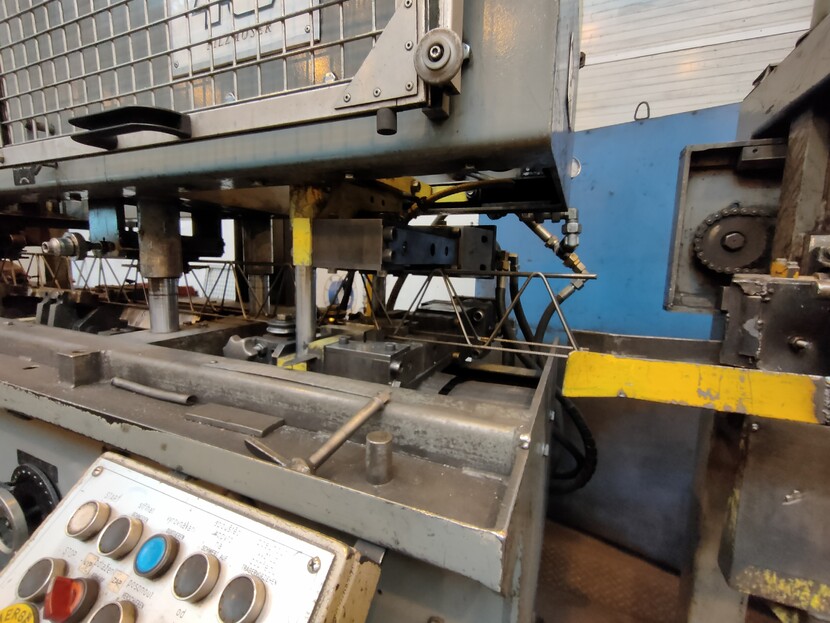

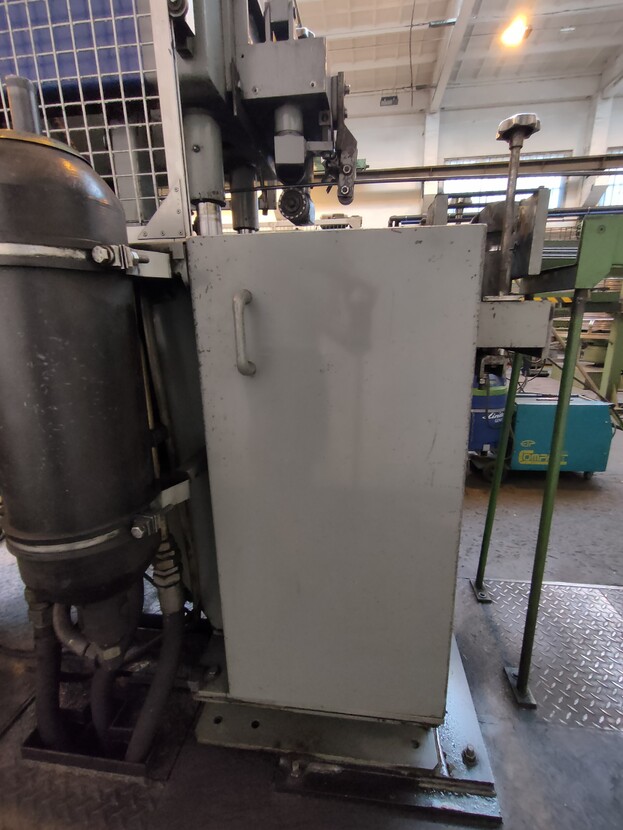

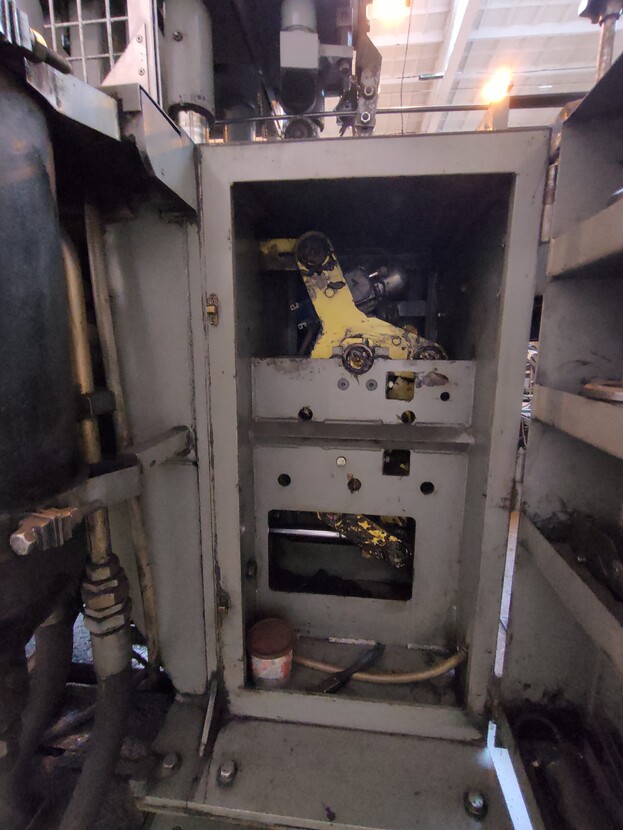

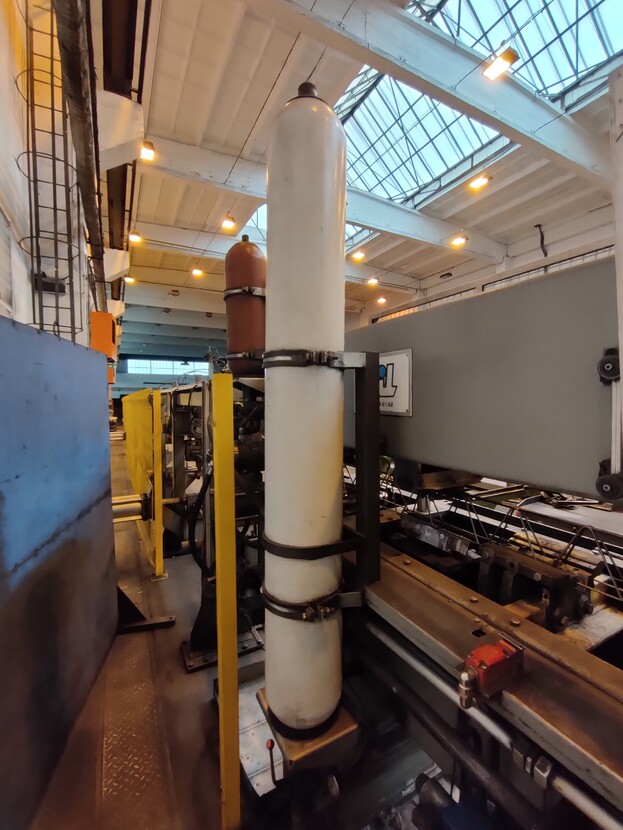

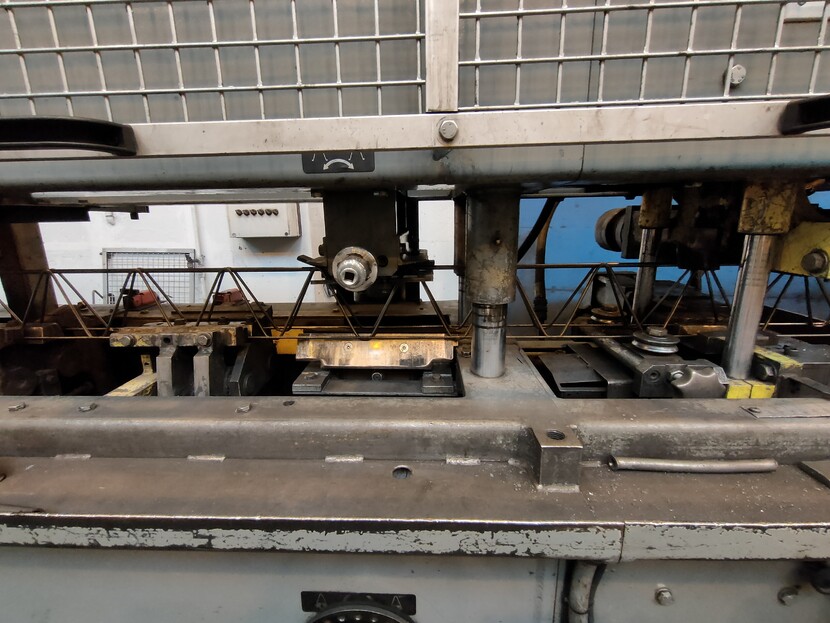

Hydraulically driven bending station for forming diagonals.
Bending pin diameter 22mm.

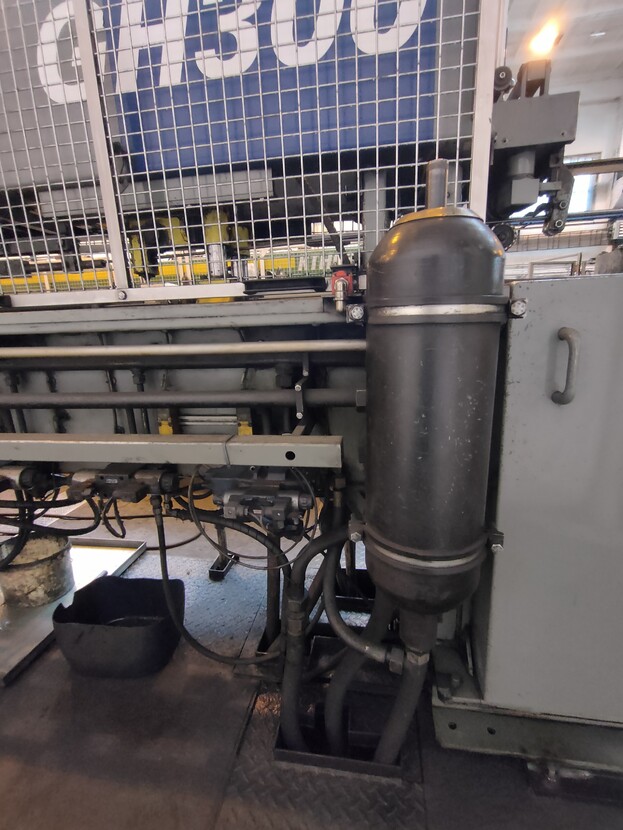

Mechanical feed with hydraulic clamping of all wires.

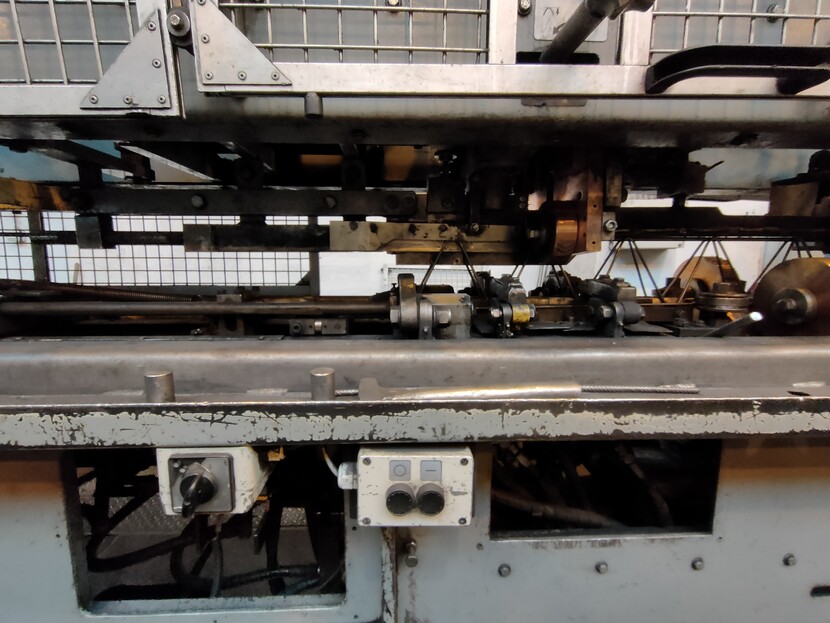

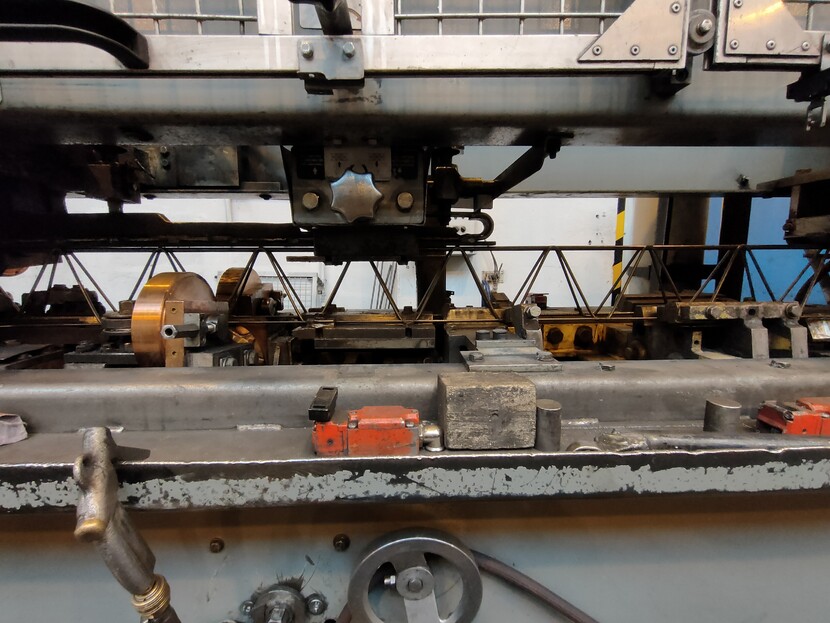

The welding electrodes are hydraulically operated. Round reusable welding electrodes.
Hydraulically operated expansion device for expansion beam widths up to max. 100mm (center of the lower flange - upper flange). Switchable and switchable. Console for the counter-holder is integrated in the welding part.
Automatic length measurement.
Cutting with hydraulic shears.
Lengths from 2 m can be cut in centimeters.

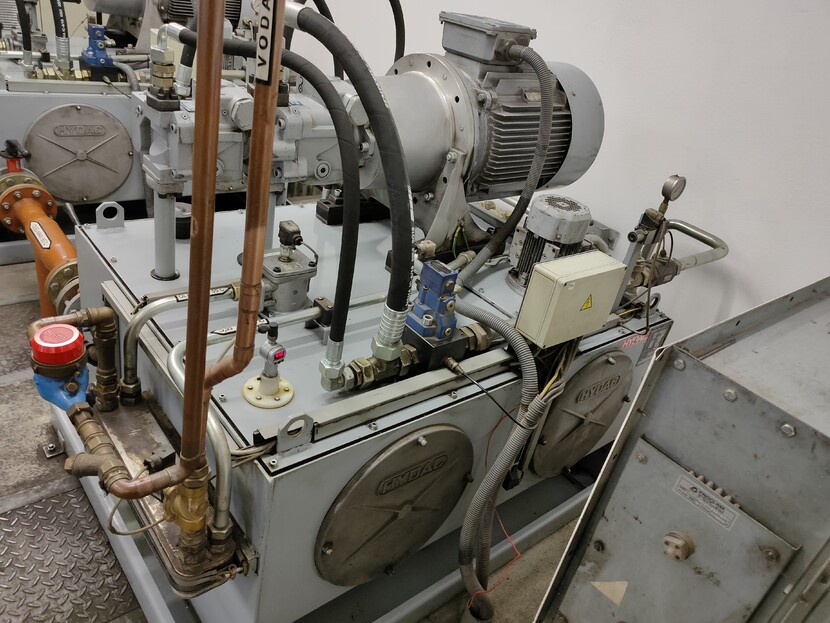

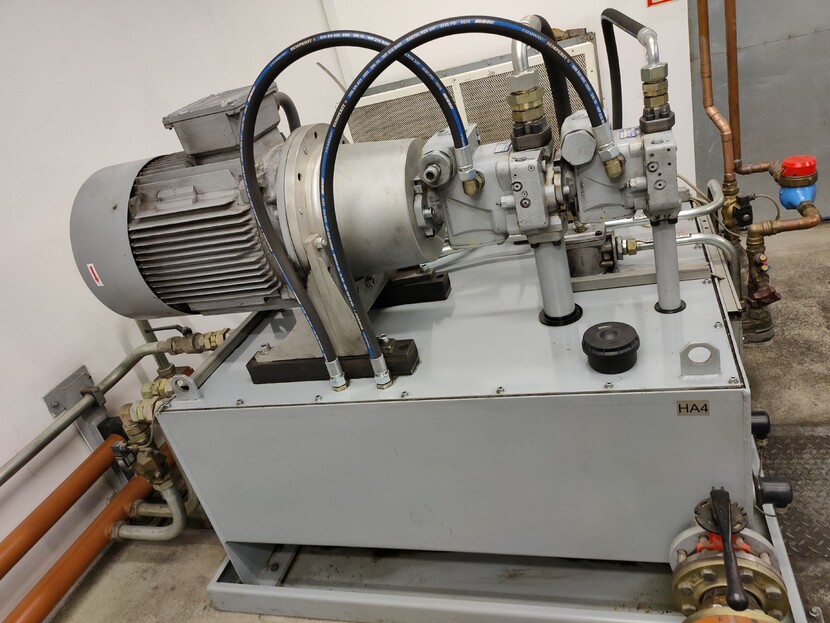

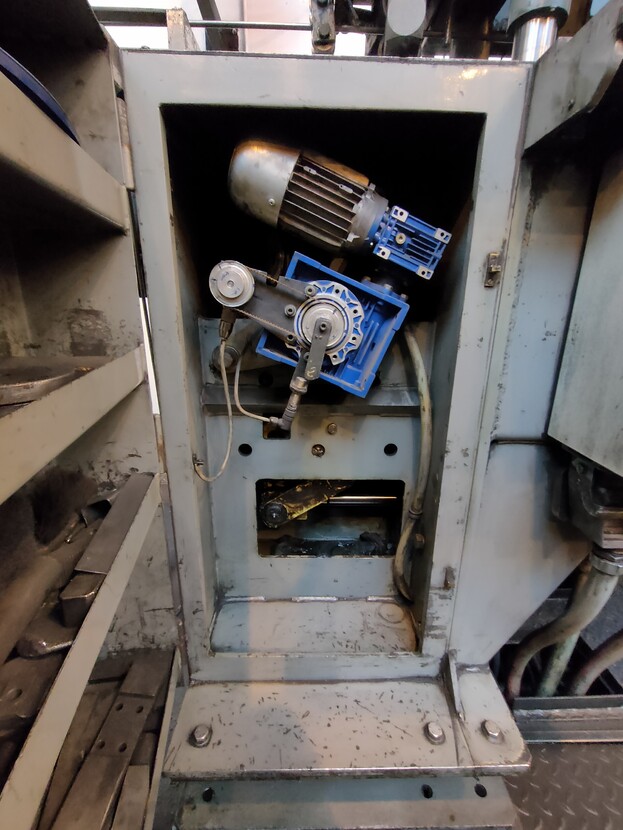

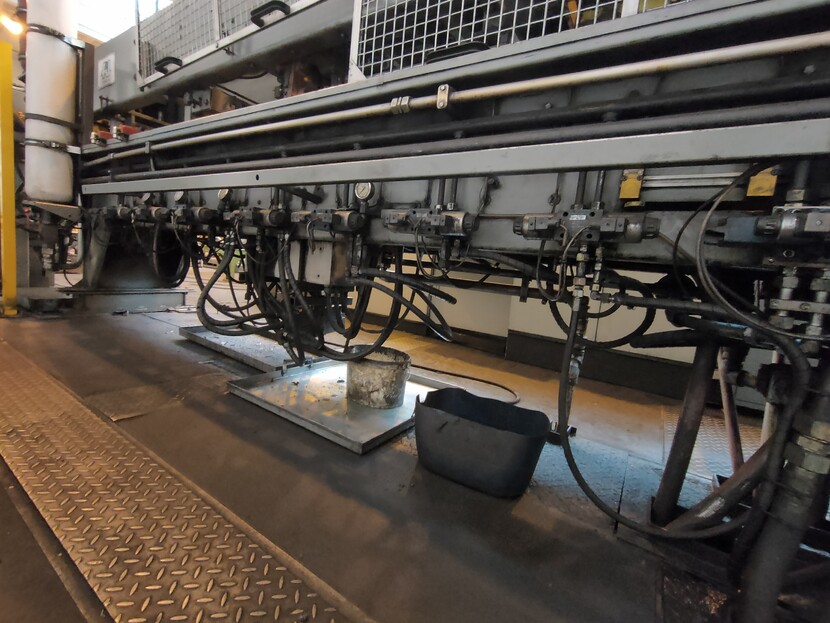

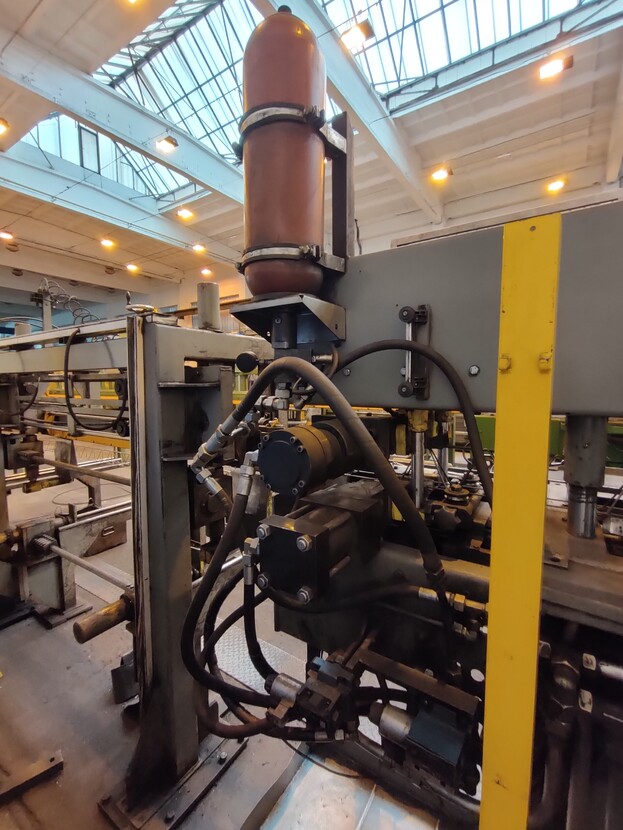

Including electric drive and hydraulic unit.
3. CONNECTION VALUES:
Voltage 3 x 400 V / 240 V
Frequency 50 Hz
Hydraulic unit 37 kW
Welding transformers 2 x 250 kVA
Required rated power of the transformer (s) approx. 500 kVA
Power supply 3 x 240 mm2, 1 x 95 mm2
Cable length max. 30 m
Compressed air consumption approx. 500 nominal I / min

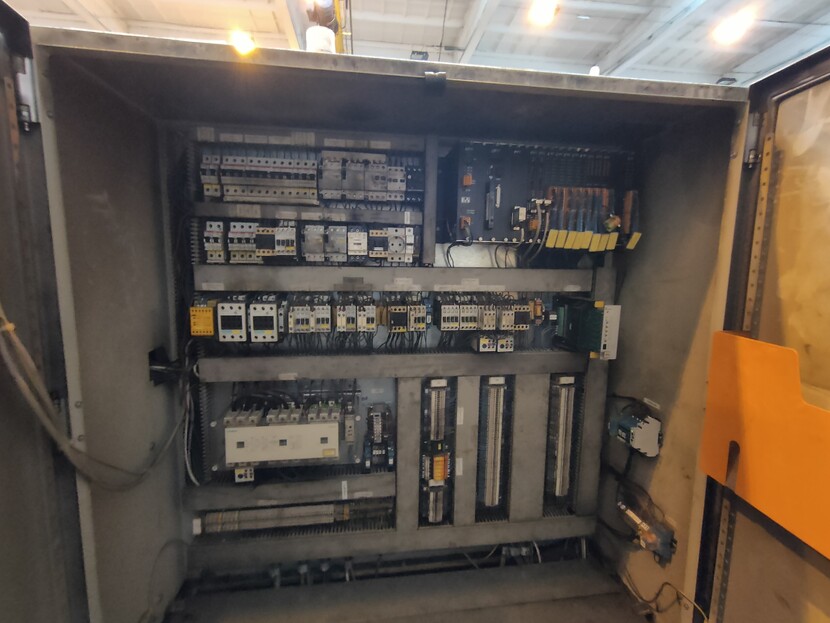

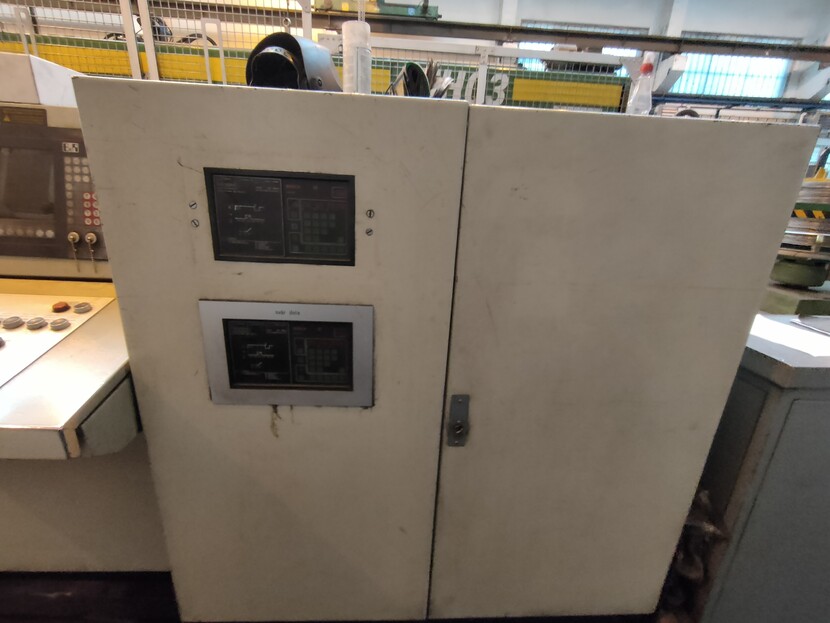

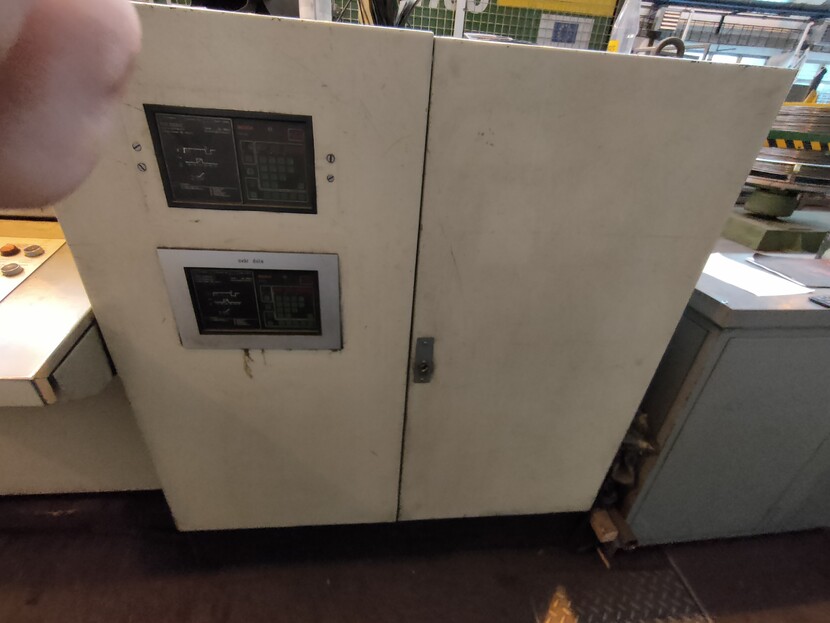

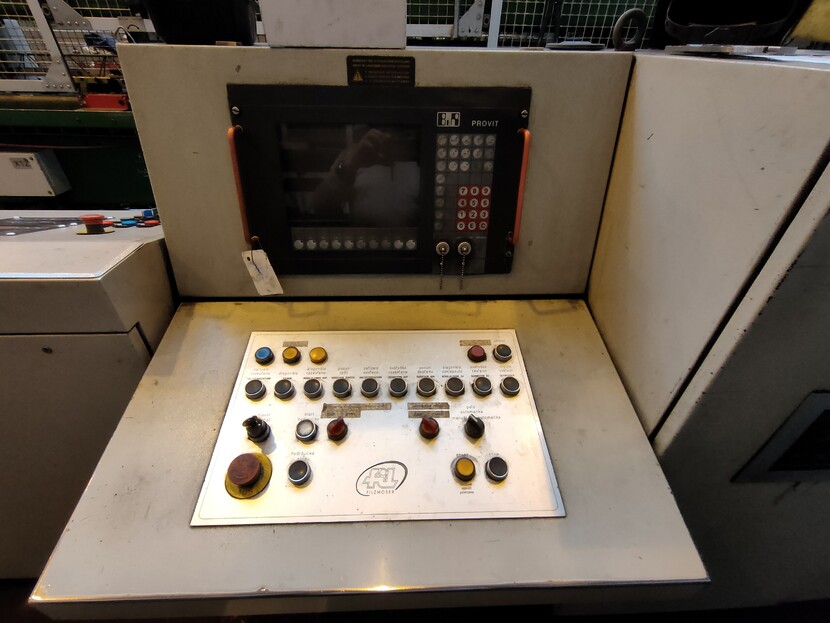

Separate control box with complete 3-phase electronic
It controls the integral part of the welding equipment.
All electronic components on mounting plates.
Fil control
Mains ratios 400 V, 50 Hz, 3-phase
Color: gray RAL 7005 / yellow RAL 1016

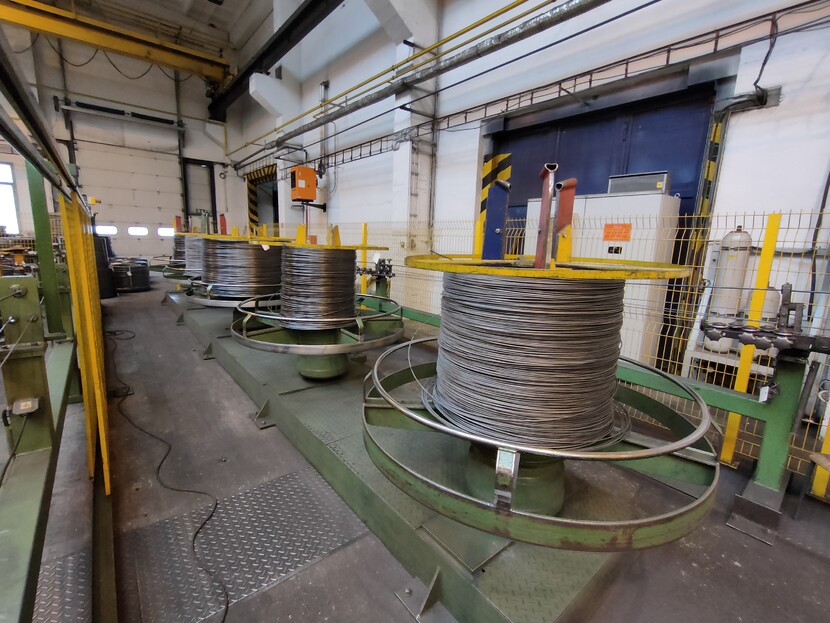

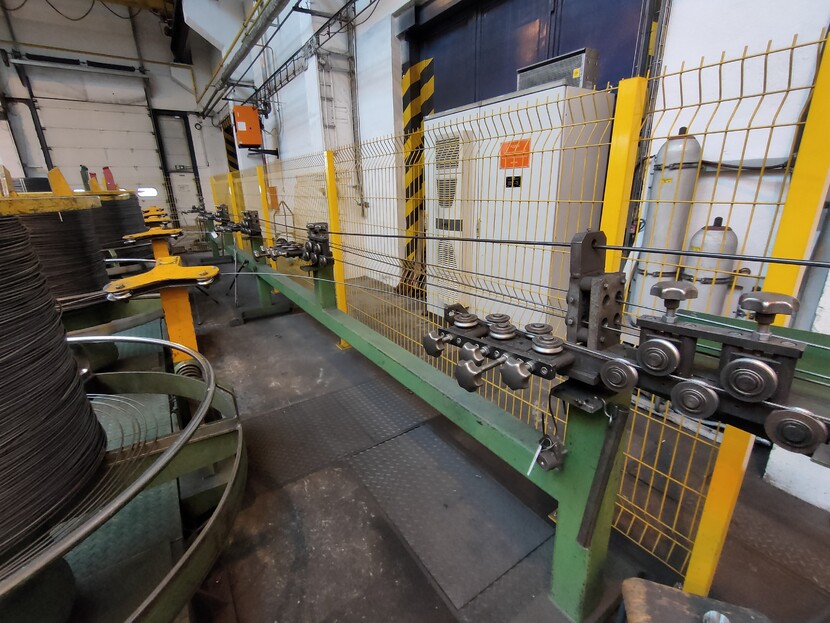

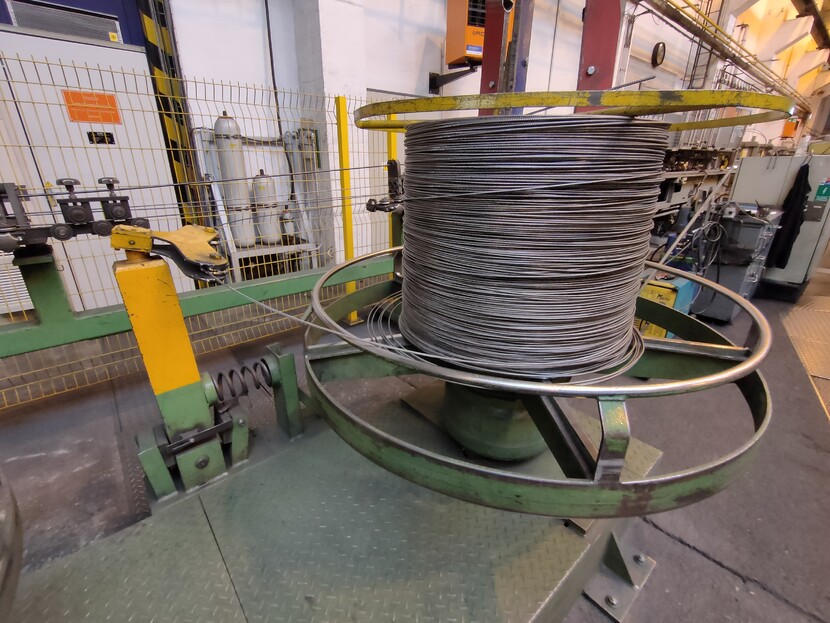

Pos.2 1 Wire unwinding with crank drive
Consisting of 5 turntables, including fixed ones reel crowns
When swinging back, the rocker levers are listed to brake movement.
Adapted for Compact - rolls with roll weights up to 3,000 kg.
The unwinding direction follows counterclockwise.

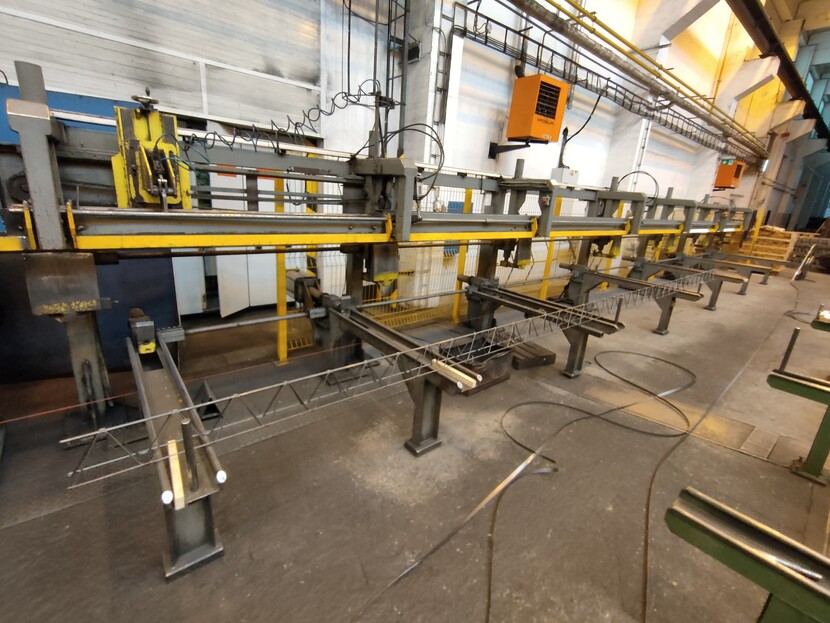

Pos.3 2 Output path for beams with collecting tank
Up to 50 lattice girders can be accumulated in the hopper.
Adapted for beam lengths from 1.2 to 14.0 m.
PRICE AND COSTS
Pos.1 1 Automatic machine for welding lattice girders
Pos.2 5 Wire unwinding
Pos.3 1 Automatic storage facility 14 m
PRICE (Pos. 1-3) = EUR 230.000,-
• The technology does not include a cooling system
• The machine does not include a compressed air system (compressor)
