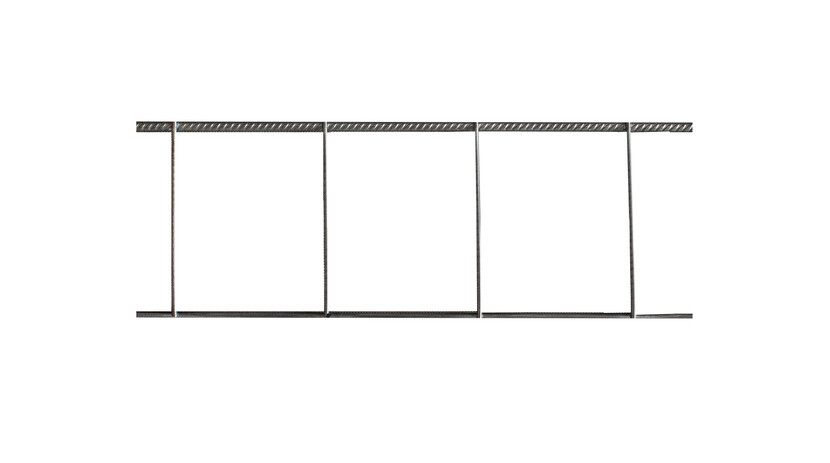

Type P single girders
Type P single girders are used in lintels over window and door openings. This reinforcement is made with one or two load-bearing wires according to the customer’s requirements, with perpendicular crossbars connected by spot weld. The advantage is that this reinforcement can be produced by us in any length ranging from 0.98 m to 7.50 m and the width of reinforcement from 110 mm to 400 mm. The number of longitudinal wires can be 2-4 and their axial distance must not be less than 10 cm.

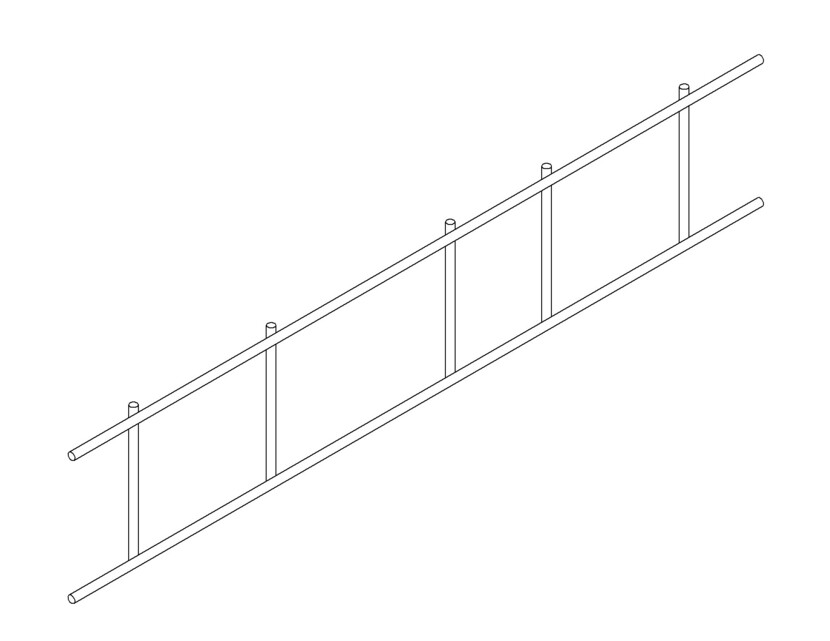

type P

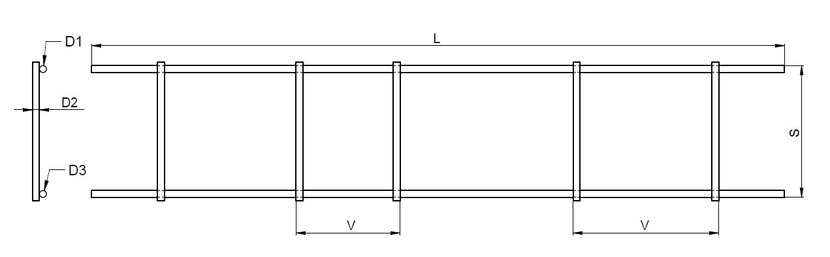

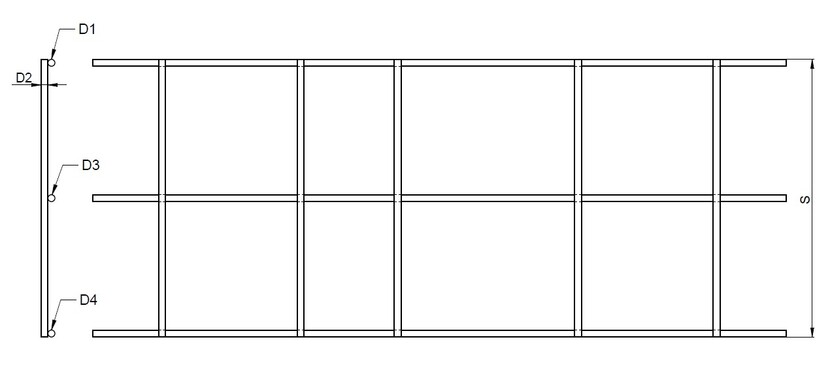

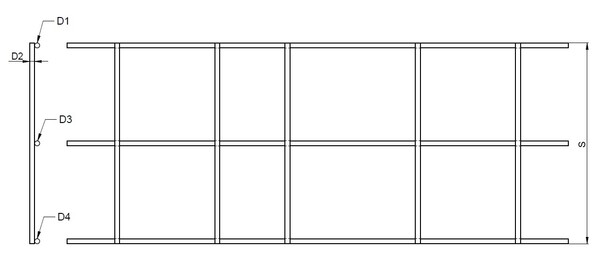

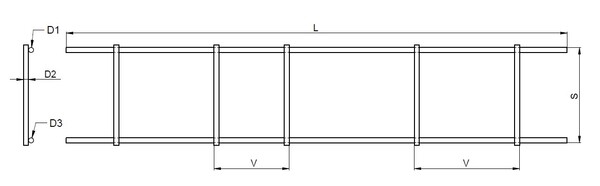

Reinforcement parameters | Designation on the diagram | Reinforcement dimensions | Type of wire used |
---|---|---|---|
Reinforcement parameters: Flange diameter | Designation on the diagram: D1, D3, D4, D5 | Reinforcement dimensions: 5 ÷ 16 [mm] | Type of wire used: B500A, B550A, B500A-G, B550A-G |
Reinforcement parameters: Diameter of cross wires | Designation on the diagram: D2 | Reinforcement dimensions: 4 ÷ 6 [mm] | Type of wire used: B500A-G, B550A-G |
Reinforcement parameters: Number of flanges | Reinforcement dimensions: 2 / 3 / 4 [pcs] | ||
Reinforcement parameters: Flange span | Reinforcement dimensions: ≥ 110 [mm] | ||
Reinforcement parameters: Cross wire distance | Designation on the diagram: V | Reinforcement dimensions: 50 ÷ 400 [mm] | |
Reinforcement parameters: Beam width | Designation on the diagram: S | Reinforcement dimensions: 110 ÷ 400 / Standard 172 [mm] | |
Reinforcement parameters: Beam length | Designation on the diagram: L | Reinforcement dimensions: 0,98 ÷ 7,5 [m] |
