Type J reinforcement

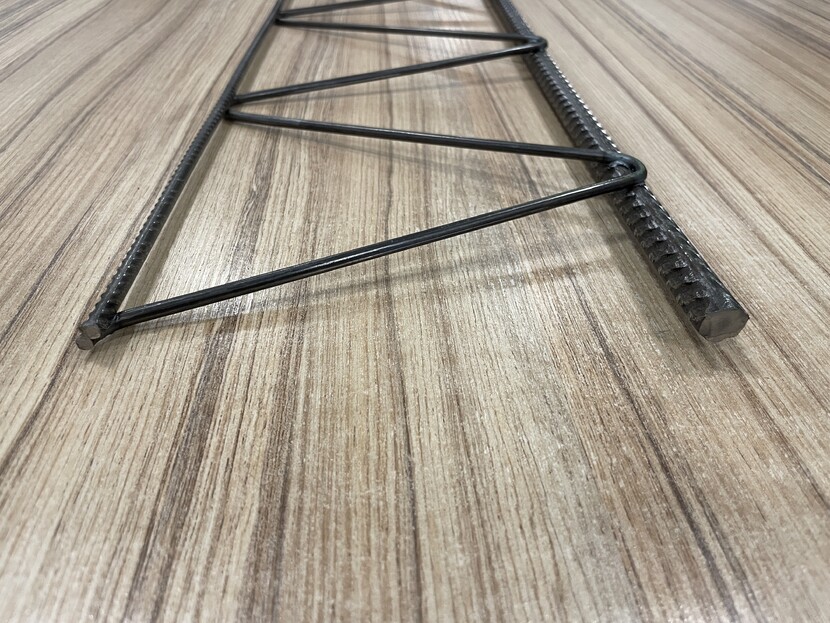

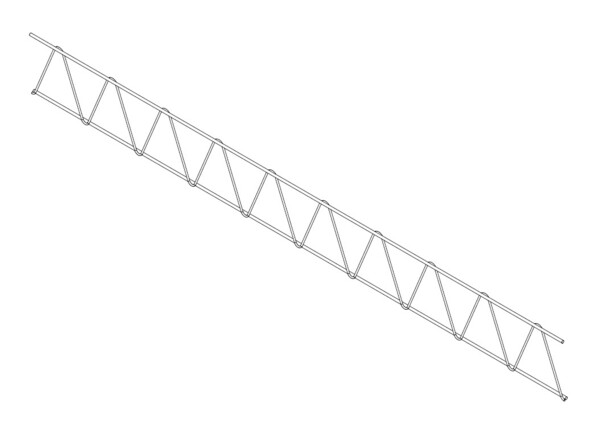

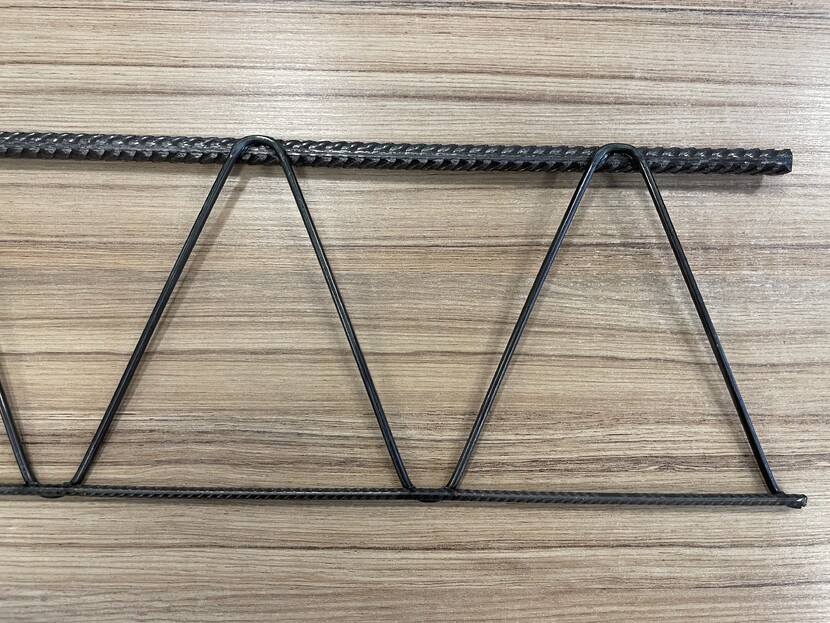

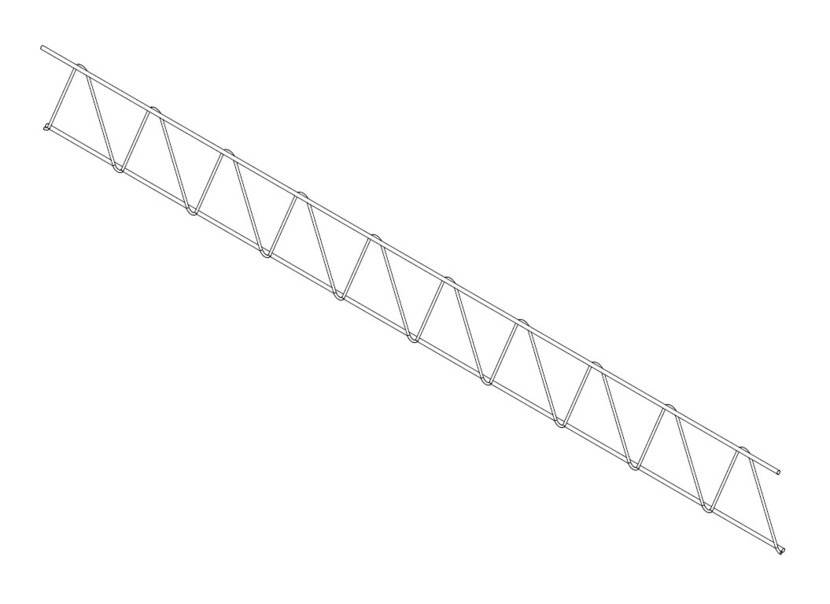

Type J single girders are used in load-bearing and non-load bearing lintels over window and door openings. This type of reinforcement is made with two load-bearing wires according to the customer’s requirements, connected by diagonals. The advantage of this product is that it can be made in any length ranging from 0.98 m to 3.50 m.
type J

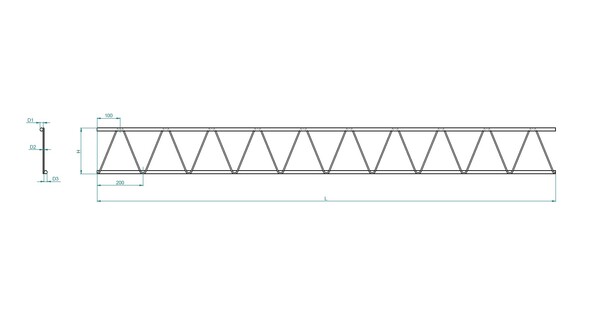

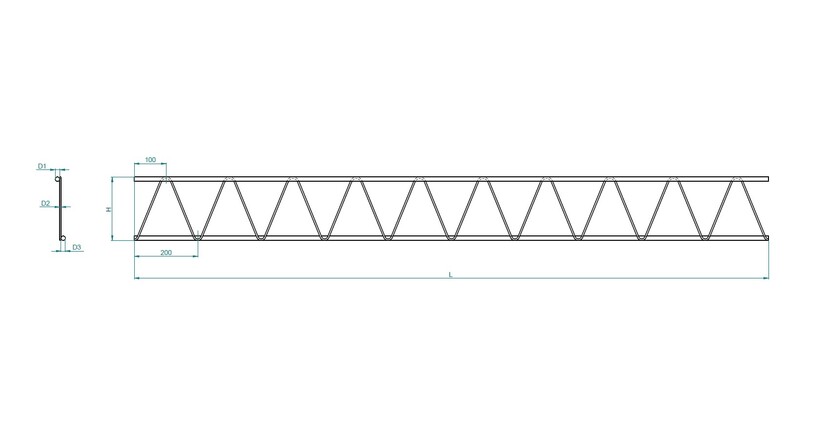

Reinforcement parameters | Designation on the diagram | Reinforcement dimensions | Type of wire used |
---|---|---|---|
Reinforcement parameters: Flange diameter | Designation on the diagram: D1, D3 | Reinforcement dimensions: 5 ÷ 14 [mm] | Type of wire used: B500A, B550A, B500A-G, B550A-G |
Reinforcement parameters: Diameter of cross wires | Designation on the diagram: D2 | Reinforcement dimensions: 5 ÷ 6 [mm] | Type of wire used: B500A-G, B550A-G |
Reinforcement parameters: Beam height | Designation on the diagram: H | Reinforcement dimensions: 100-200 [mm] | |
Reinforcement parameters: Beam length | Designation on the diagram: L | Reinforcement dimensions: 0,98 ÷ 3,5 [m] |
